Why use a walking foot at all?

Why use a walking foot on your sewing machine? Great question.

As a sewing machine sews, it feeds the fabric forward a designated length of space between each stitch.

stitch·feed·stitch·feed·stitch·feed

The presser foot holds the fabric down against the gripped feed teeth (also known as feed dogs) which are positioned below the needle plate. As the needle goes up out of the fabric, the feed dogs rise just above the needle plate surface and move to feed the fabric forward. When the needle goes back down into the fabric to make the next stitch, the feed dogs disappear momentarily below the needle plate.

And so it goes… stitch-feed-stitch-feed-stitch-feed.

When we use a sewing machine, we are typically sewing multiple layers of fabric together. The feed dogs only make contact with the bottom layer of fabric, not the top layer.

Because the bottom layer of fabric is in contact with the gripped feed teeth and the top layer is not, a potential problem arises: the bottom layer of fabric may feed at a slightly different rate than the top layer. I’ve heard many people, particularly quilters, refer to this problem as slippage.

The basic idea is that you can combat slippage and achieve a more even feed between multiple fabric layers by using a walking foot, because you essentially have feed dogs feeding both the top layer of fabric and the bottom layer of fabric — also known as dual feed.

---

Different types of walking feet

Not all walking feet are created equal. Here’s how the three you’ll run into stack up — each is covered in detail below.

---

Type 1

Entry-level walking foot

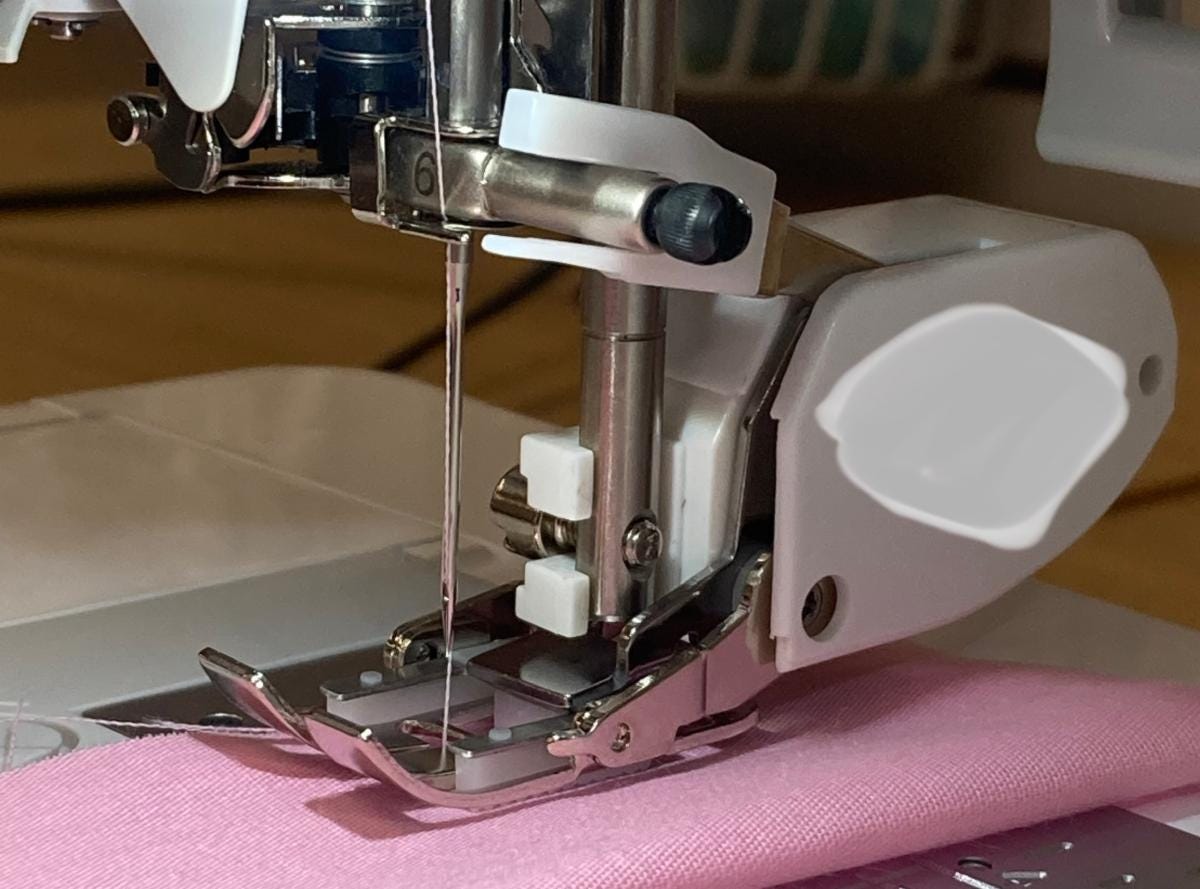

The photo below shows the basic walking foot you’ll find on nearly every machine that costs less than $1,500:

There are a few things I want to point out.

1. It has a lever that goes around the needle bar set screw. The walking foot is designed like this because it’s the up-and-down movement of the needle bar that drives the walking foot’s gripped feed teeth. In other words, the walking foot reacts to the needle movement — which is fine, but not ideal.

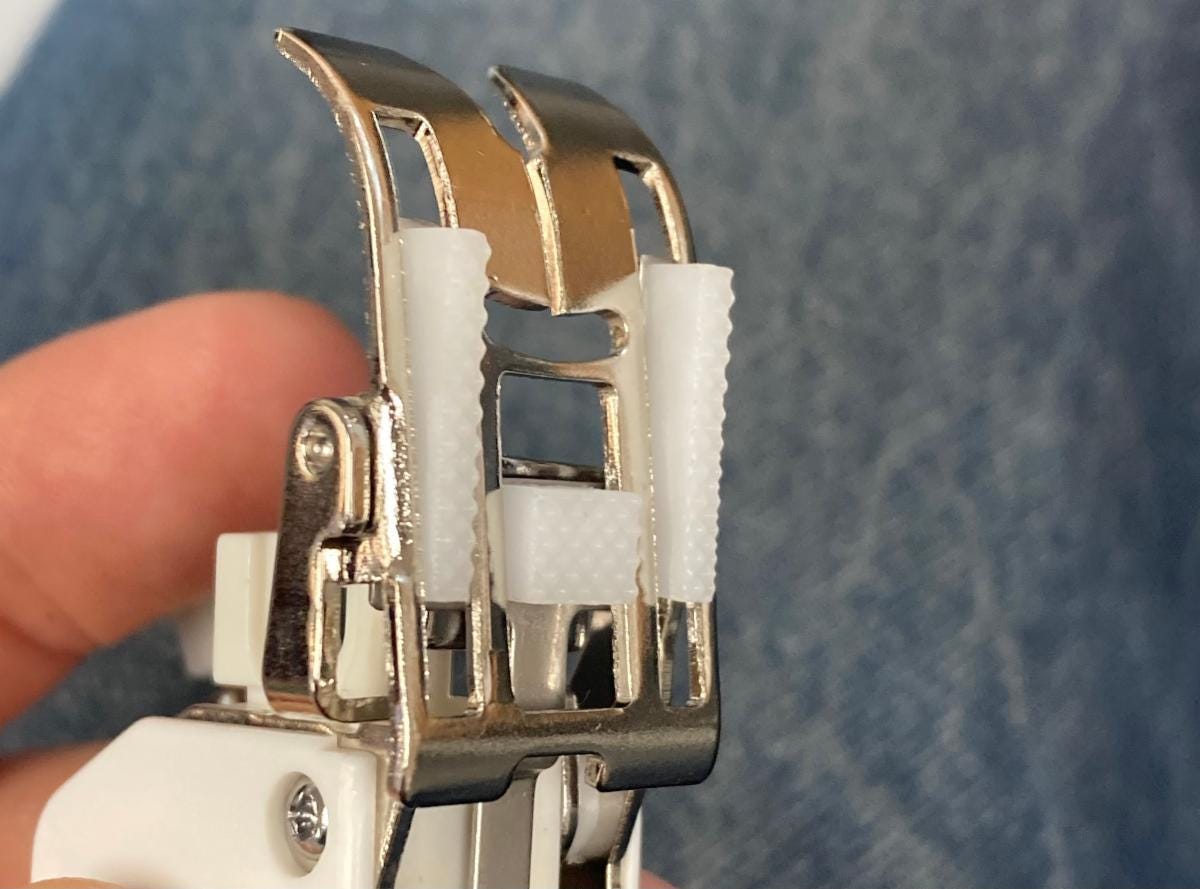

2. The gripped feed teeth are made of plastic. Again, this is fine, but not ideal.

---

Type 2

Janome AcuFeed Flex walking foot

Janome calls this walking foot the AcuFeed Flex System, and I would argue that it is the best-performing walking foot in the world.

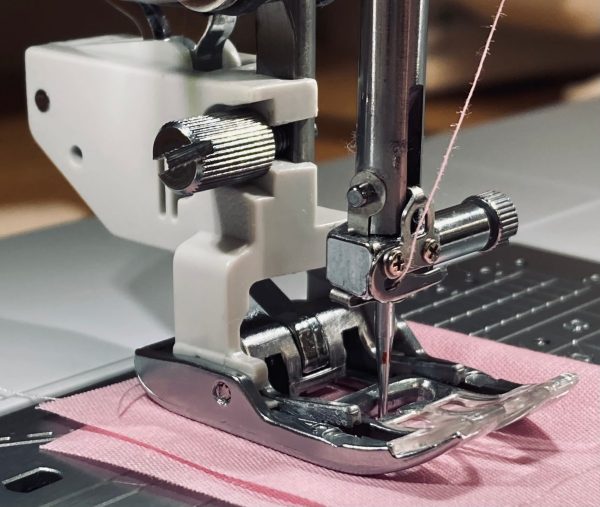

As you can see in the photo above, there is no lever that goes around the needle bar screw, meaning that, unlike the entry-level walking foot, the action of the walking foot’s gripped feed teeth is not dependent on the movement of the needle bar.

That raises the question: how do the walking foot’s gripped teeth move?

As you can see in the photo above, the Janome AcuFeed walking foot hooks into a mechanism in the back of the machine. Remember the old song about the thigh bone connects to the knee bone, the knee bone connects to the shin bone, and so on? The same principle applies here. The walking foot is hooked into a mechanism that connects it to the upper shaft of the machine. The upper shaft is connected to the motor belt and the motor belt is connected to the lower shaft. And guess what the lower shaft is connected to? The machine’s feed dog mechanism.

I point this out because this unison of movement gives Janome’s AcuFeed walking foot the distinction of integrated dual feed. Because the AcuFeed foot is directly hooked into the machine’s critical internal components, the gripped feed teeth operate completely in sync with the machine’s feed dogs, which helps deliver a more perfect even feed than a basic entry-level walking foot.

Not only does it help prevent slippage, not only does it deliver a more even feed when sewing multiple layers of fabric — it does a third thing that is really unique.

Shop the machines

Janome machines with the AcuFeed Flex system

Already own one?

Specialty soles for your AcuFeed foot

---

Type 3

Bernina built-in dual feed

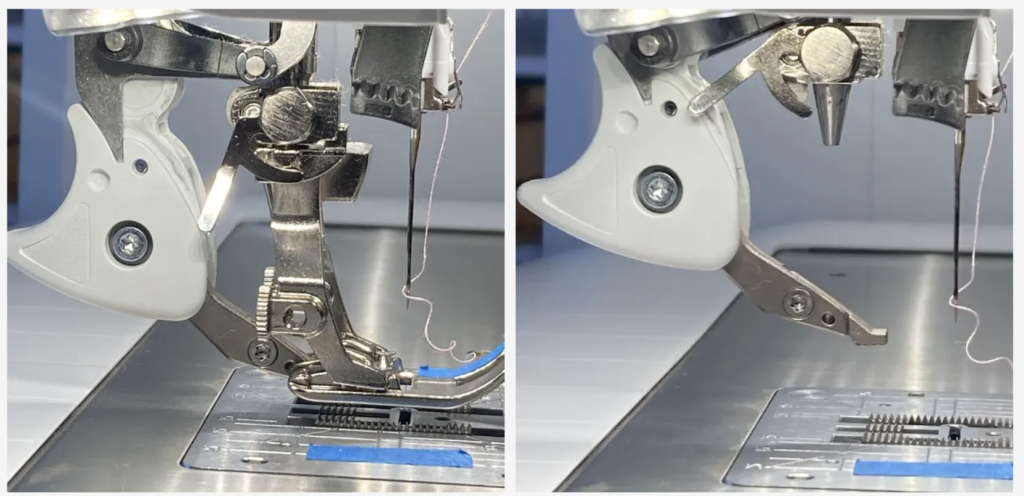

Bernina has an integrated walking foot of their own, which is commonly known as “built-in dual feed.”

As the name implies, this version of a walking foot is built into the machine. The benefit of this design is that it is super easy to engage the walking foot. All you have to do is pull the dual feed down into the presser foot and you’re ready to go.

Those of you who have used the traditional style walking feet before will know it can be a bit of a pain to remove the entire presser foot and ankle, then have to screw on the walking foot while also getting that lever around the needle bar screw. With Bernina’s built-in dual feed, you won’t have to pull out a screwdriver to put it on and take it off. There is no struggling to get the walking foot lever over the needle bar screw. You simply pull down the dual feed to engage it, and you push it back up to disengage it.

Similar to Janome’s AcuFeed system, Bernina’s built-in walking foot also meets the criteria to be classified as integrated dual feed. It does not have as many gripped feed teeth as the Janome walking foot, but the teeth are also made of metal and overall it performs extremely well.

The one downside of Bernina’s built-in dual feed is that the machines that have it are rather expensive. As far as I’m aware, at the time of writing the least expensive Bernina machine that offers built-in dual feed is the B570, which sells for around $4,000.

If someone wants a quality machine with built-in dual feed but does not want to spend thousands of dollars, they should consider a pre-owned Bernina or a vintage Pfaff machine from the ’80s, ’90s or early 2000s — e.g. the 7550, 2140, 2022, etc.

Shop the machines

Bernina machines with built-in dual feed

No dual feed on your Bernina?

Genuine Bernina walking feet

---

Thank you for reading, and happy sewing.
